EB-Therm 350

- programmable underfloor heating thermostat for optimal energy saving

EB-Therm 350 in brief
• Microprocessor-controlled thermostat with fuzzy technology that provides a more constant temperature and lower energy consumption.
• Operating time function that displays time activated as a percentage for the last 24 hours, week, month or year.
• Adaptive function that automatically regulates the heating so that the required temperature is reached at the set time.
• Clear, backlit LCD display that shows set value, time and date.
• Programmable with optional temperature and time settings.
• Three separate temperature regulating functions and two preset energy saving programs.
• Ventilation function that saves energy when airing rooms.
• Automatic adjustment for summer- and wintertime as well as for leap years.
• Adjustable frost protection between 5-15°C.

Characteristics
EB-Therm 350 belongs to the new generation of underfloor heating thermostats with ultra advanced temperature control that saves energy. The thermostat automatically ensures that the temperature is maintained at a constant level. The two preset programs that are installed are adapted for home- or office environments. It is also possible to make separate settings for weekdays and weekends, entirely in accordance with individual heating requirements.

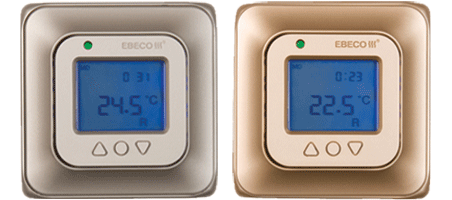

EB-Therm 350 has an LCD display with blue backlighting that is activated by pushing a button. The clear display means that the thermostat is highly user-friendly.

EB-Therm 350 is labelled Energy Saver.

Fuzzy technology
All EB-Therms are digital and equipped with fuzzy technology, which means that from the outset the thermostat is gathering the data on which it bases its calculations as to when it should turn on and off. The technology reduces fluctuations in temperature, which results in a more even temperature and lower energy consumption.

Packing
EB-Therm thermostats are supplied with face-plate and frame suitable for flush mounting in a standard backbok. The thermostats are electronic and polar white in colour. A 3 m long sensor cable are included.


Installation
The thermostats are suitable for flush mounting or surface mounting. For surface mounting an extension frame (E 85 816 68) should be used.

Technical facts
Voltage 230 VAC±10% 50-60Hz
Air temperature range 5°C to 37°C
Floor temperature range 5°C to 45°C
Temperature limiter 5°C to 45°C
Breaking capacity 250 V 16 A
Connecting cable max 2.5 mm²
Load Cos φ = 0.3 max
Hysteresis ±0.3°C
Ambient temperature 0°C to +60°C
Degree of protection IP21
Running reserve* 36 hours
Colour Polar white
Max. length of sensor cable 50m, 2x1.5mm²
Graphical LCD display 36x29mm
INDICATION:
230 V supply connected Green LED
Heating cable operating Red LED
Suitable for Eljo Trend, Elko RS, Strömfors and Merten frame systems.
EMC certified. Withstands a surge of 2500 V AC.
*Time the programmed settings are preserved in the thermostat in the event of power failure, for instance.
